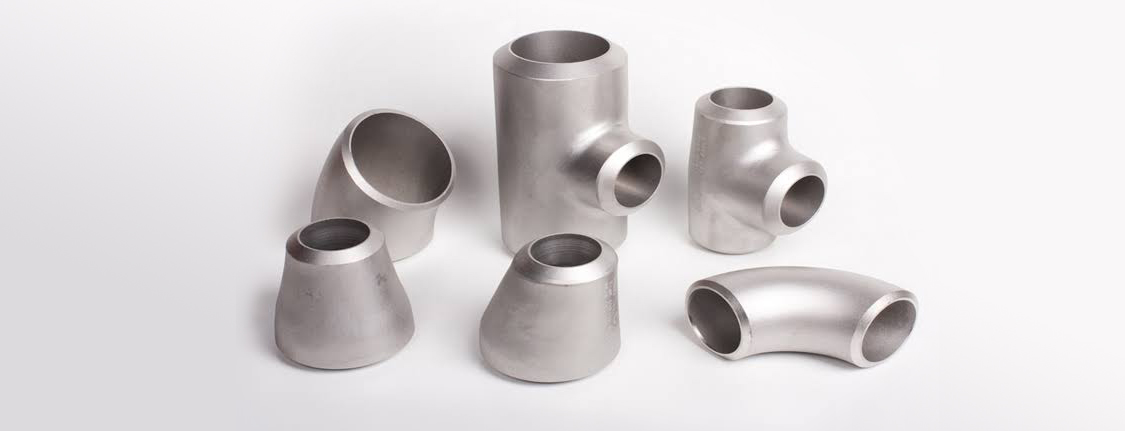

An ISO 9001 : 2015 Certified Company, D Balaji Pipe Fittings is a leading manufacturer and exporter of high nickel based special alloy buttweld pipe fittings and forged fittings. Generally seamless monel pipe fittings (UNS N04400) are available in the size range of ½” NB to 8” NB. For sizes above 8”NB, we offer our customers with seam welded 100% radiography tested monel pipe fittings. D Balaji Pipe Fittings offers a complete range of monel pipe fittings such as monel reducer, monel elbow, monel tee, monel cross, monel stub ends and monel pipe bends.
We are one of the most trusted exporter and manufacturer of monel forged fittings in a size range of 1/2″ to 4″ in both socket weld and threaded form. We specialise in the manufacture and supply of monel pipe bends in both standard and non standard sizes, with bending radius of 1D to 10D. Some of our key products include Monel 400 Pipes, Custom Size Monel Tubings, Fabricated Monel 400 Pipes, Custom Fabrications in Monel Alloy 400, Monel Elbows , Monel Flanges, Monel Pipe Nipples , Monel Needle Valves, Monel Capillary Tubes, Coiled Tubing in Monel Alloy 400
Monel pipe fittings are especially suitable for reducing conditions in industries such as marine engineering, chemical processing, hydro-carbon processing, heat exchangers, valves and pumps. D Balaji Pipe Fittings also stocks and supplies a complete range of monel pipes to complement our existing production range of buttweld fittings and flanges. Monel pipes can be supplied in cut to length sizes and also machined or fabricated to meet your piping requirements.
Our monel tube products are regularly exported to Brazil, South Africa, UAE, Bahrain, Italy, Indonesia, Malaysia, United States, Mexico, Chine, Brazil, Peru, Nigeria, Kuwait, Jordan, Dubai, Thailand (Bangkok), Venezuela, Iran, Germany, UK, Canada, Russia, Turkey, Australia, New Zealand, Sri Lanka, Vietnam, South Africa, Kazakhstan and Saudi Arabia, Oman.
We distribute our monel pipes and tubing products across all major cities and industrial areas in India such as Mumbai, Delhi, Bangalore, Hyderabad, Ahmedabad, Chennai, Kolkata, Surat, Pune, Nagpur, Indore, Thane, Bhopal, Visakhapatnam, Vadodra, Nashik, Faridabad, Rajkot, Aurangabad, Ranchi, Coimbatore, Raipur, Mysore, Bhubaneswar, Salem, Bhilai, Bhiwandi, Bikaner, Mangalore, Kochi (Cochin), Bhavnagar, Tirupur, Ankleshwar, Assam, Siliguri, Jamshedpur, Warangal, Nellore, Agartala and Thoothukudi.
Monel Flanges Manufacturer/Supplier
Monel Pipe Fittings Manufacturer/Supplier
Monel Pipes Supplier/Stockholder
Specification | ASTM B366, ASME B366, ASTM B564, ASME SB564, ASTM B865, ASME SB865 |
---|---|
Grade | Alloy 400/Monel 400/UNS N04400/2.4360, Alloy K-500/Monel K-500/UNS N05500/2.4361 |
Type | Seamless / Welded / Fabricated |
Bending Radius | R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom |
Range | ½”NB to 24”NB in Sch 10s, 40s, 80s, 160s, XXS. |
Dimensions | ANSI/ASME B16.9, B16.28, MSS-SP-43. |
Products | Size | |
---|---|---|
Monel 400 Elbows – Long Radius | Monel 400 Stub Ends |
Sizes 1/2″ – 24″ |
Monel 400 Elbows – Short Radius | Monel 400 Crosses | |
Monel 400 Reducing Elbows | Monel 400 Reducing Crosses | |
Monel 400 45° Elbows | Monel 400 180° LR Return Bends | |
Monel 400 Tees | Monel 400 180° SR Return Bends | |
Monel 400 Reducing Tees | Monel 400 Pipe Bends / Piggable Bends | |
Monel 400 Reducers | Monel 400 Couplings | |
Monel 400 Concentric Reducers | Monel 400 Nickel Pipe Nipples | |
Monel 400 Eccentric Reducers | Monel 400 Forged/Plate Cut Rings | |
Monel 400 3D Elbow | Monel 400 End Caps | |
Monel 400 5D Elbow | Monel 400 Forged / Plate Circles |
Products | Size | |
---|---|---|
Monel 90° Elbows | Monel Couplings |
Sizes 1/8″ – 4″ Pressure Ratings – |
Monel 45° Elbows | Monel Reducers | |
Monel Street Elbows | Monel Inserts | |
Monel Tees | Monel Caps | |
Monel Crosses | Monel Unions |
Specification | ASTM / ASME SB 564 / 160 / 472 |
UNS Grade | Monel 400 (UNS No. N04400), Monel K500 (UNS No. N05500). |
Standard | ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc. |
Size | ½” to 36″ |
Dimensions | ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, etc. |
Class / Pressure | 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc. |
Product | Size | |
---|---|---|
Monel Slip-On Flanges | Monel Threaded Flanges |
1/8″ – 36″ Raised Face or Flat Face |
Monel Weld Neck Flanges | Monel Socket Weld Flanges | |
Monel Blind Flanges | Monel Reducing Flanges | |
Monel Lap Joint Flanges | Monel Plate Flanges |
Products are packaged to ensure that there is no damage during transit. In case of exports, standard export packaging is done in wooden cases. All fittings and flanges are marked with Grade, Lot No, Size, Degree and our trade mark. On special requests we can also, make custom marking on our products.
At D Balaji Pipe Fittings, all fittings and flanges are subject to strict inspection at each stage of the production process, from starting material purchasing to product dispatch. They are visually examined for conformity to ASTM, ASME, MSS, DIN, EN, and JIS codes and standards. Upon request, official certified Inspection Agencies can be called in to witness the material reports, dimensions and quality conformity of products.
